25kg digital metal gear servo
35.00 $

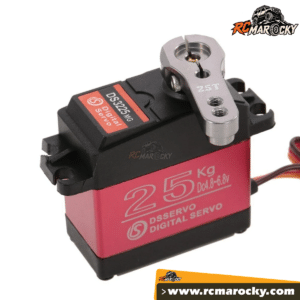

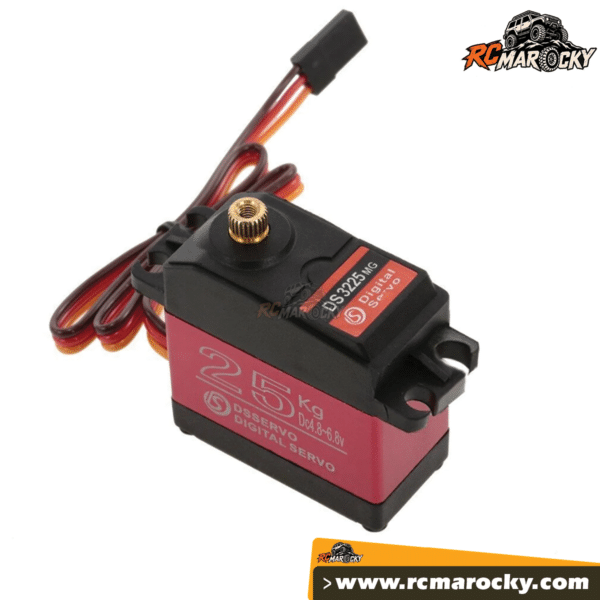

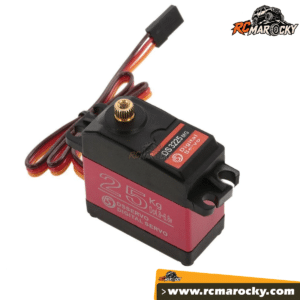

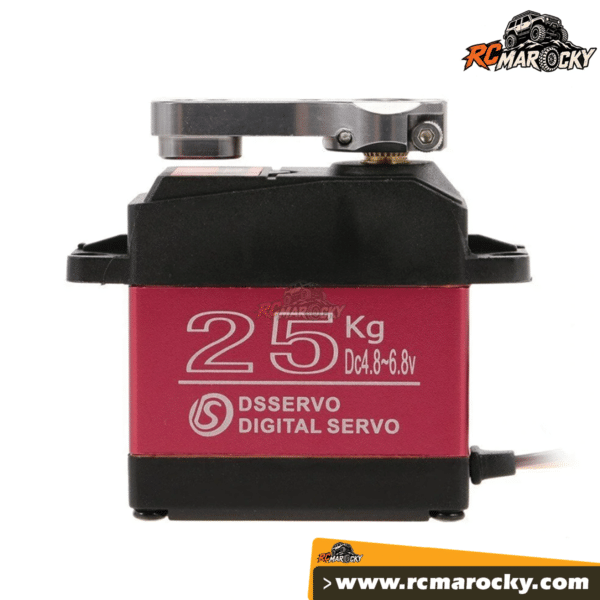

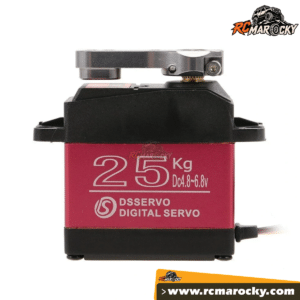

25kg digital metal gear servo designed for RC crawler vehicles, with high torque, a CNC-machined aluminum center case and metal gears. Worldwide shipping.
The servo delivers up to 25 kg/cm of torque at 6.8V, making it suitable for steering and other high-load functions on RC crawler builds. Its aluminum center case helps dissipate heat, while the metal gear system is designed for durability under repeated use.
25kg digital metal gear servo designed for RC crawler vehicles, with high torque, a CNC-machined aluminum center case and metal gears. Worldwide shipping.
Key Features
- Up to 25 kg/cm torque at 6.8V
- Metal gear system
- CNC-machined aluminum center case
- Rubber sealing gaskets for the screws
- Digital servo
- Suitable for RC crawler vehicles

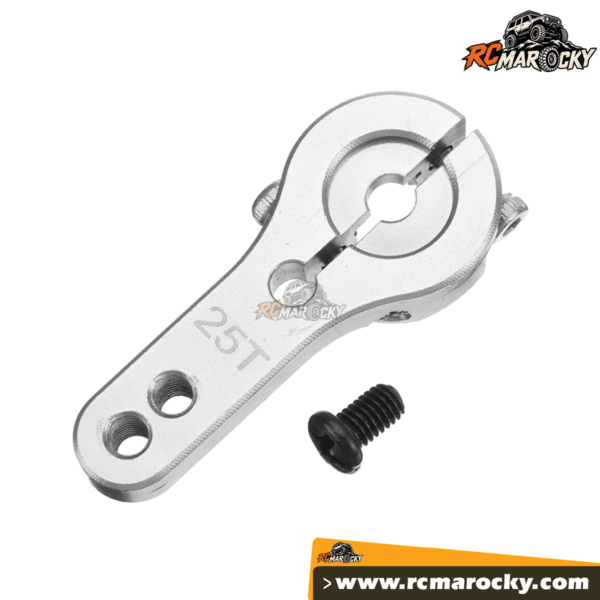

- Adjustable 25T metal servo arm included
Technical Specifications
- Model: DS3225
- Type: Digital servo
- Operating voltage: 4.8–6.8V
- Operating speed at 5.0V: 0.15 sec/60°
- Operating speed at 6.8V: 0.13 sec/60°
- Stall torque at 5.0V: 21 kg/cm
- Stall torque at 6.8V: 25 kg/cm
- Dead band: 3 μs
- Operating frequency: 50–333 Hz
- Gear type: Metal
- Motor type: DC motor
- Connection cable length: approximately 300 mm
- Dimensions: 40 × 20 × 40.5 mm

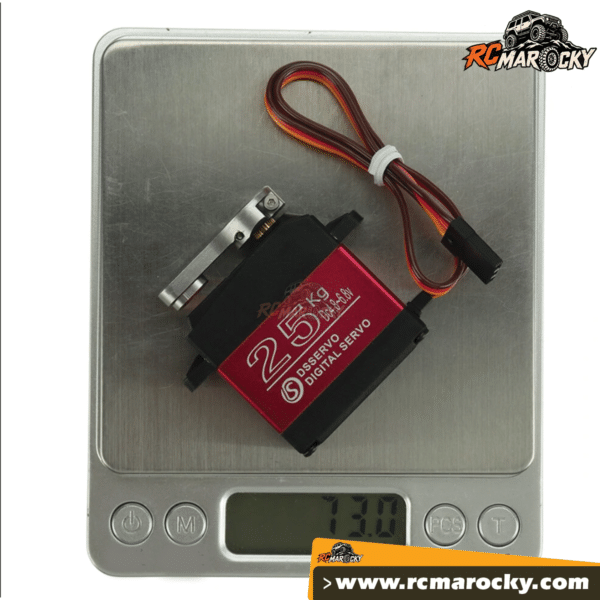

- Weight: 67 g
Box Contents
- 1 × DS3225 25kg digital servo
- 1 × Adjustable 25T metal servo arm
Note: The supplier does not specify the connector type, so it has not been added.
