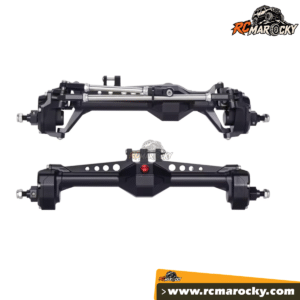

Portal Axle Set — 1:10 Crawler
189.00 $
Machined aluminum front and rear portal axle set for 1:10 RC crawlers. Worldwide shipping.
The portal axle design increases ground clearance beneath the axles, while the machined aluminum housings provide a solid upgrade over standard axle housings. The front axle offers up to 45° of steering, with adjustable shock and upper-link mounting positions for different suspension setups.
Machined aluminum front and rear portal axle set for 1:10 RC crawlers. Worldwide shipping.
Key Features
- Front and rear portal axle set
- CNC-machined aluminum alloy housings

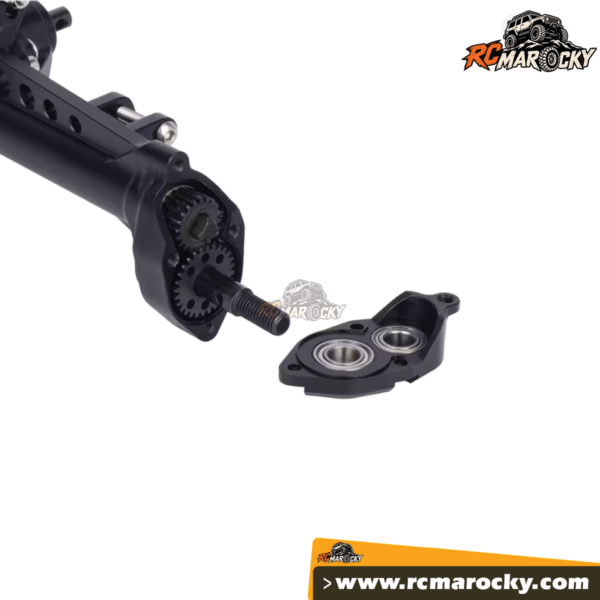

- Hard steel portal gears
- High-pinion hypoid axle gears
- Stainless steel driveshafts
- Up to 45° steering angle

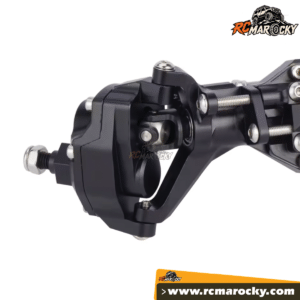

- Reinforced high-caster C-hubs
- Adjustable lower shock mounting position
- 2 upper-link mounting positions
- 5 mm output shafts
- 12 mm standard hexes
Technical Specifications
- Type: Front and rear portal axle set
- Scale: 1:10
- Material: Aluminum alloy, stainless steel, hardened steel
- Color: Black / silver
- Front axle weight: 320 g
- Rear axle weight: 237 g
- Output shaft: 5 mm
- Hex: 12 mm standard
- Hex thickness: 5.6 mm
- Steering angle: Approximately 45°
- Bevel gear set: 30T / 8T
- Portal gear set: 28T / 20T
- Total gear ratio: 7.19:1
- Compatibility: Vanquish VS4-10 Phoenix F10 LCG chassis
Box Contents

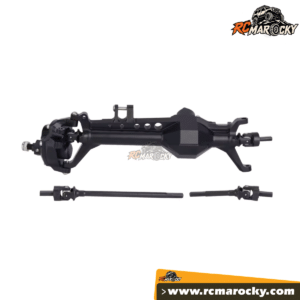

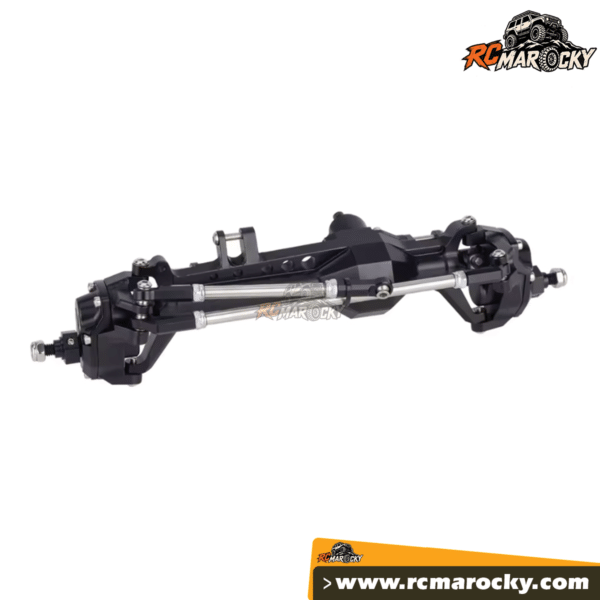

- 1 × Front portal axle

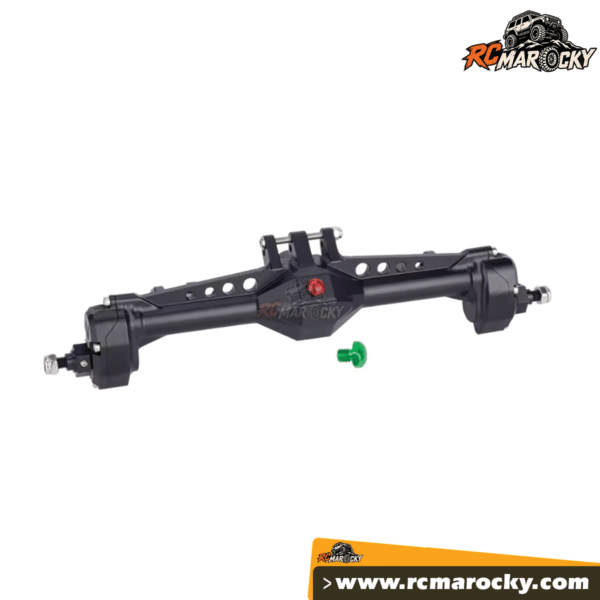

- 1 × Rear portal axle
- Steering rods
- Adapters
- Associated axle hardware
| Scale | 1:10 |
|---|
